RN Series

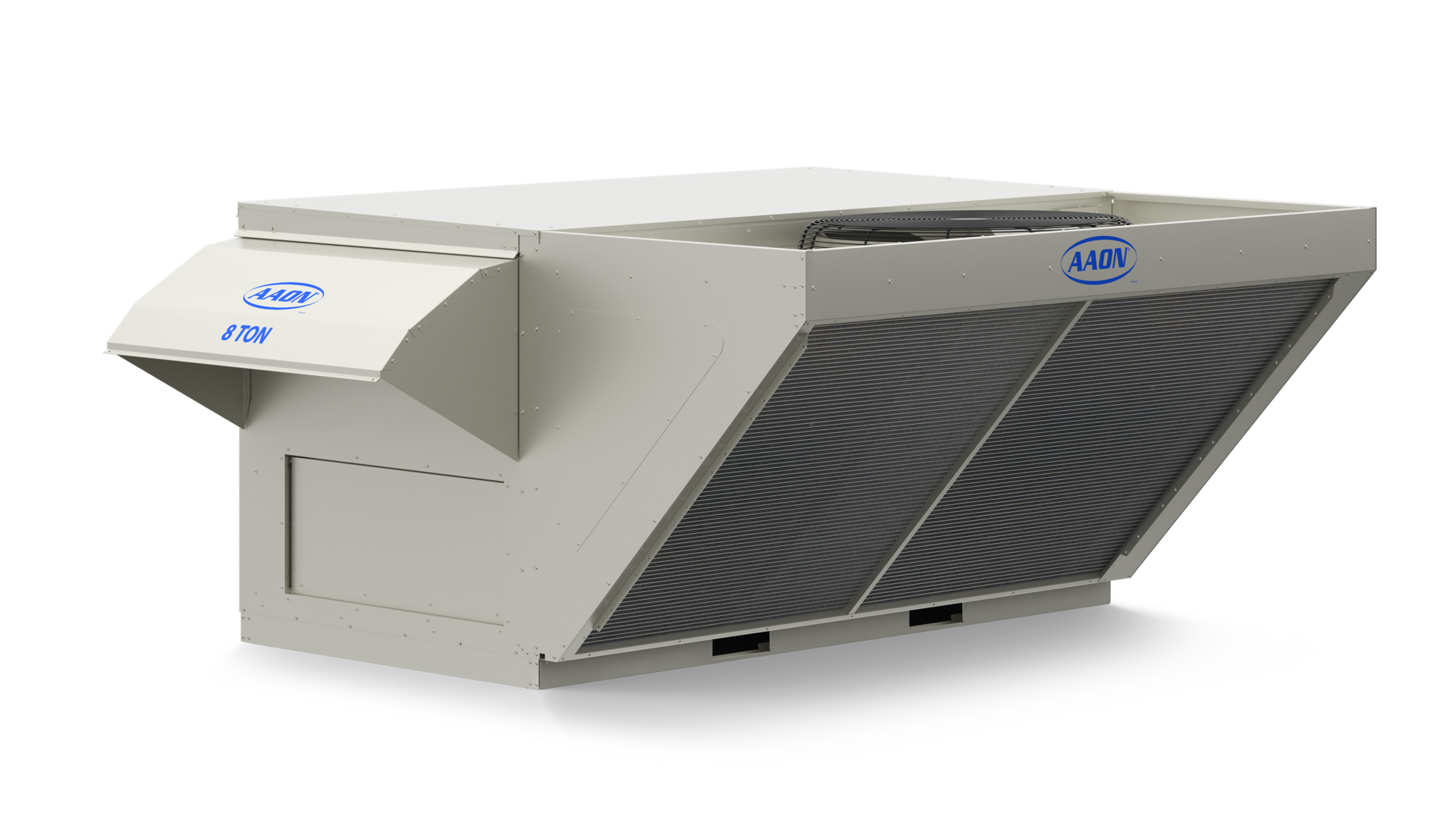

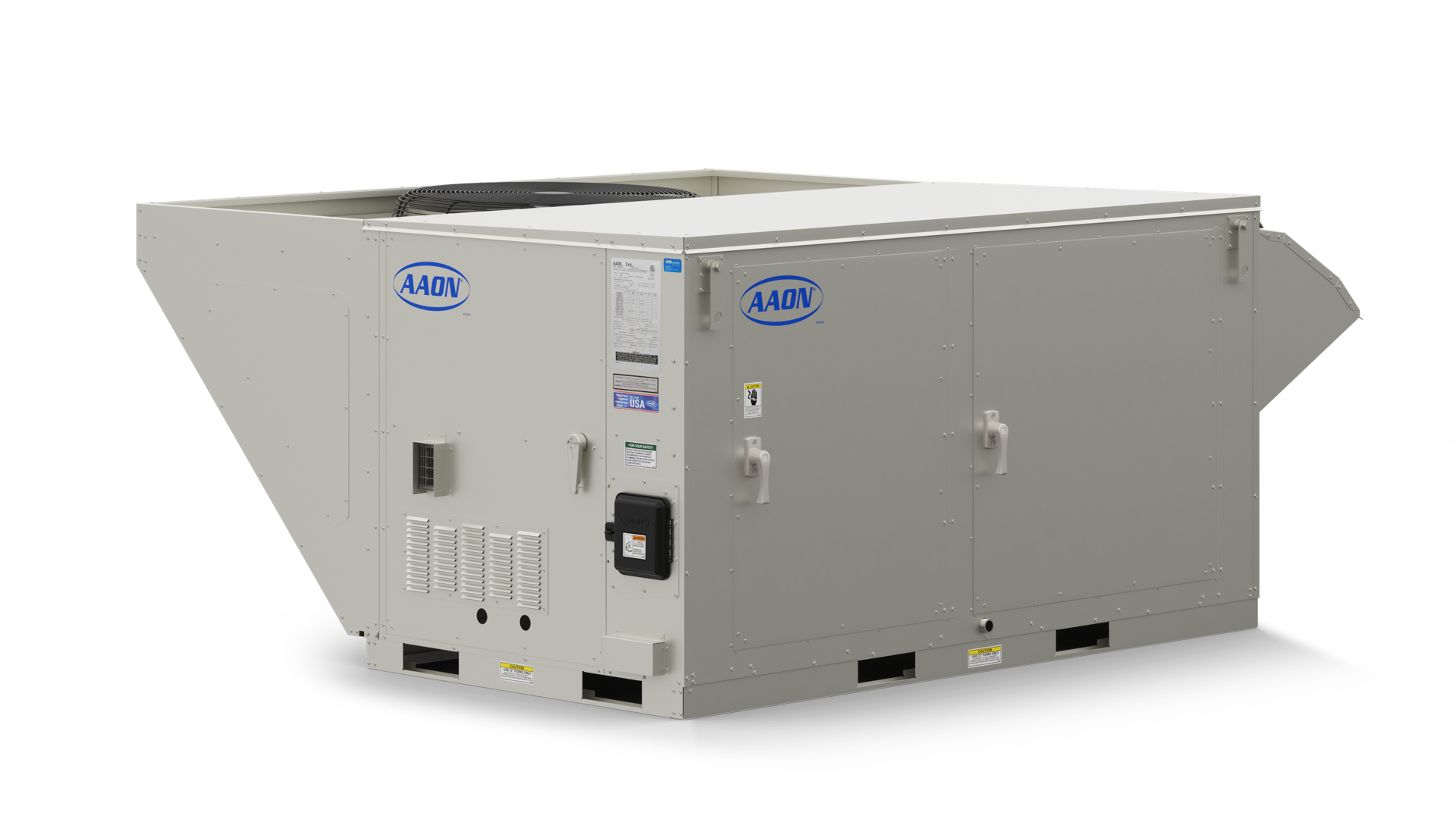

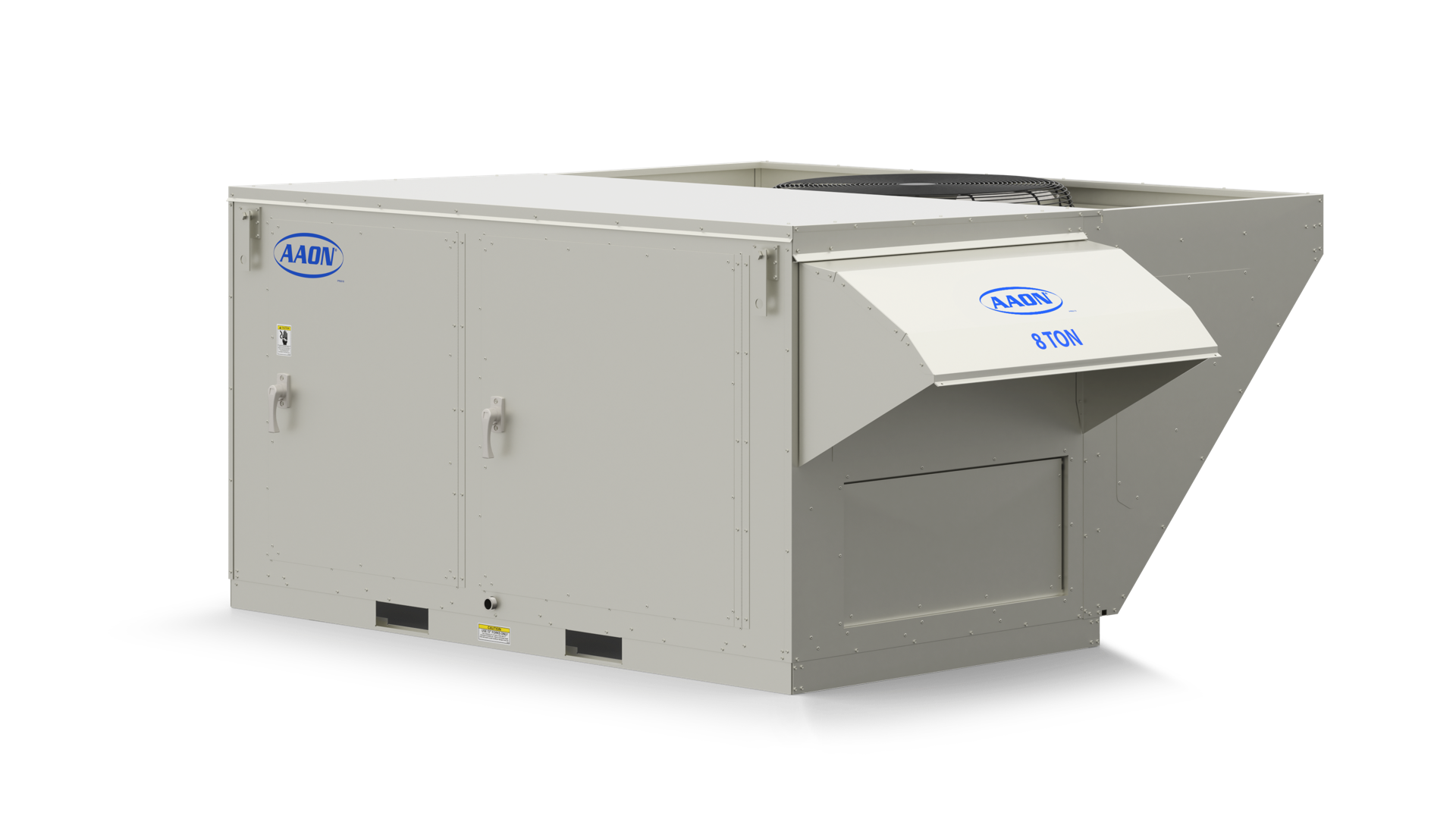

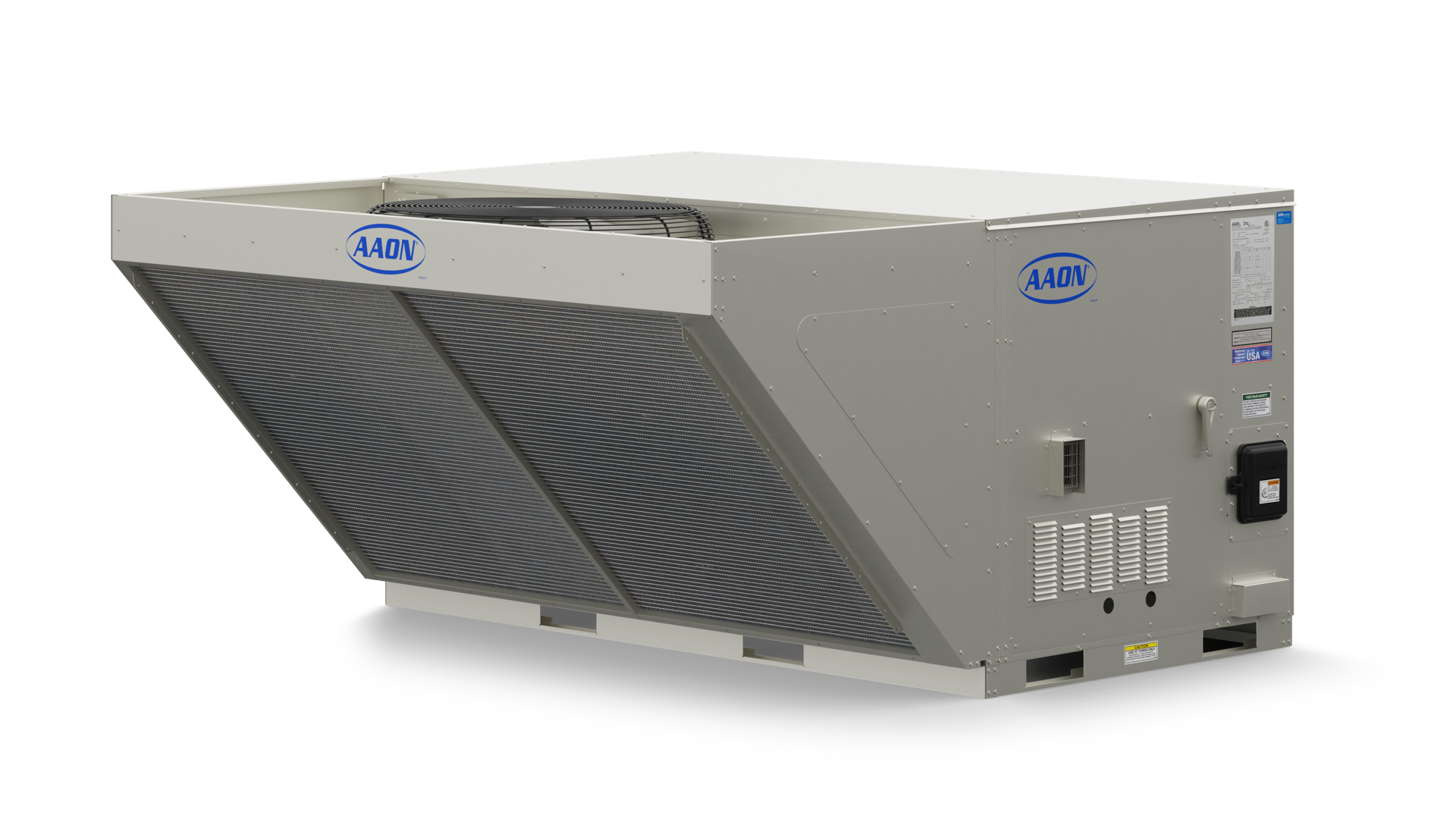

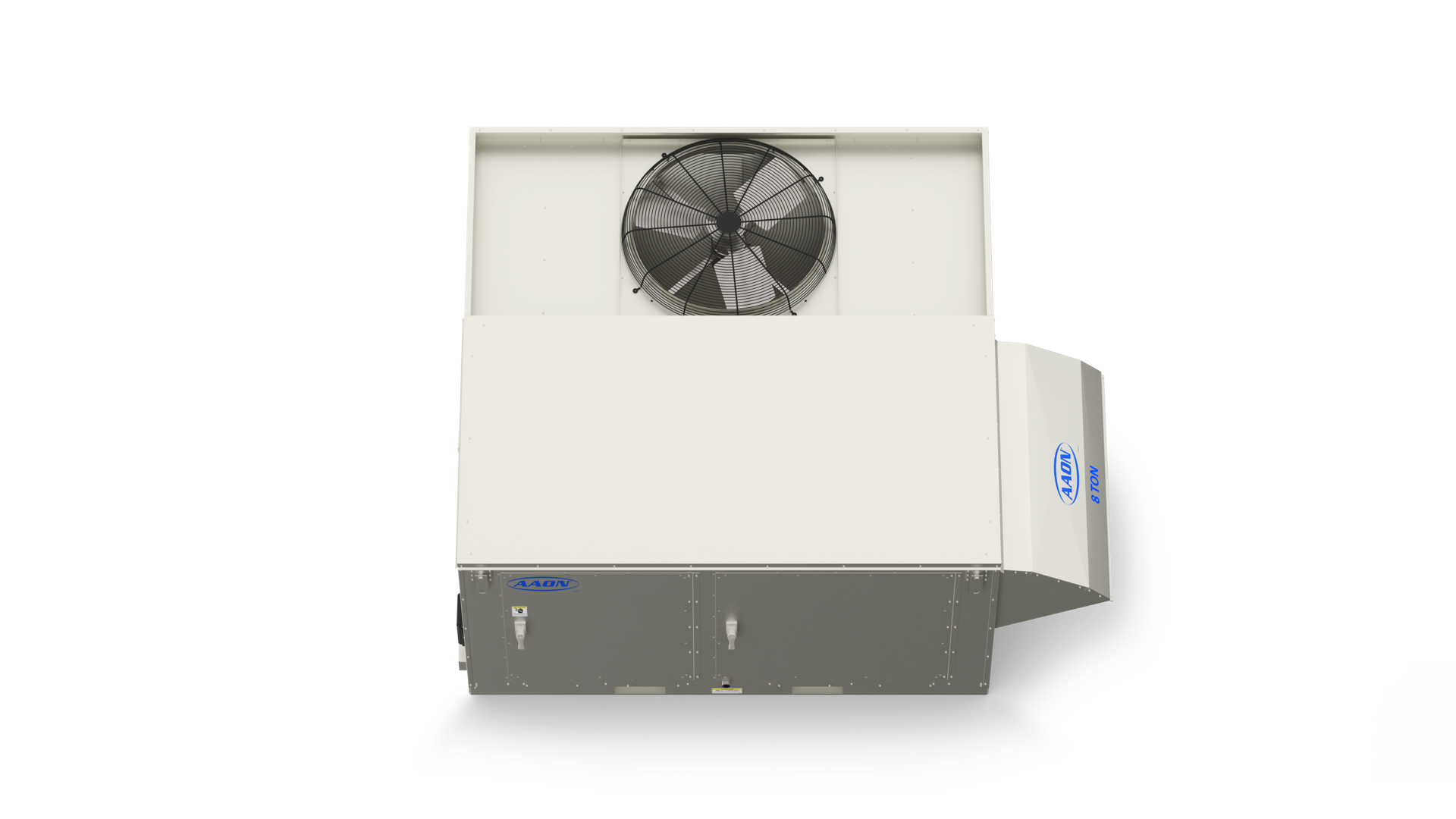

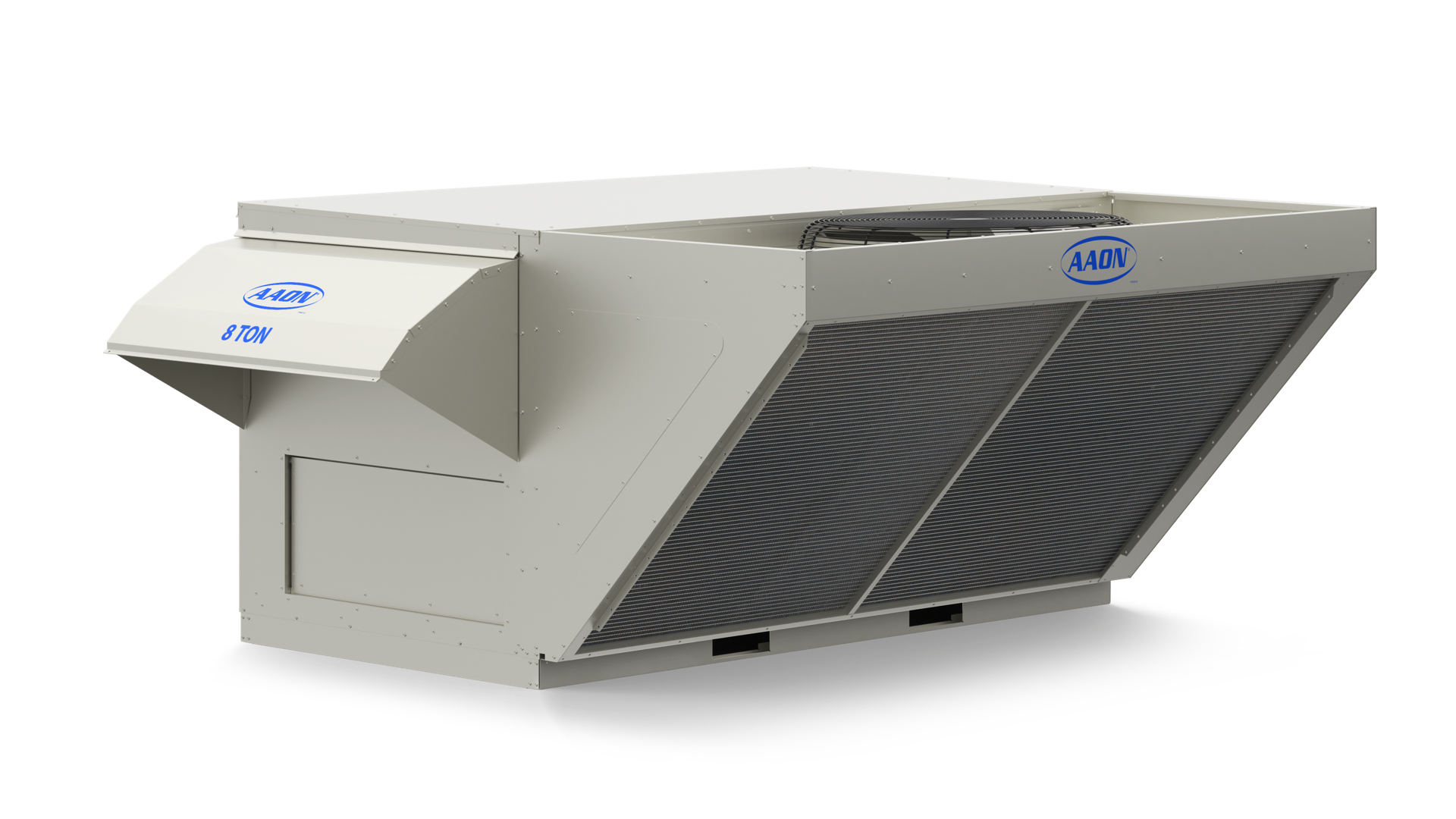

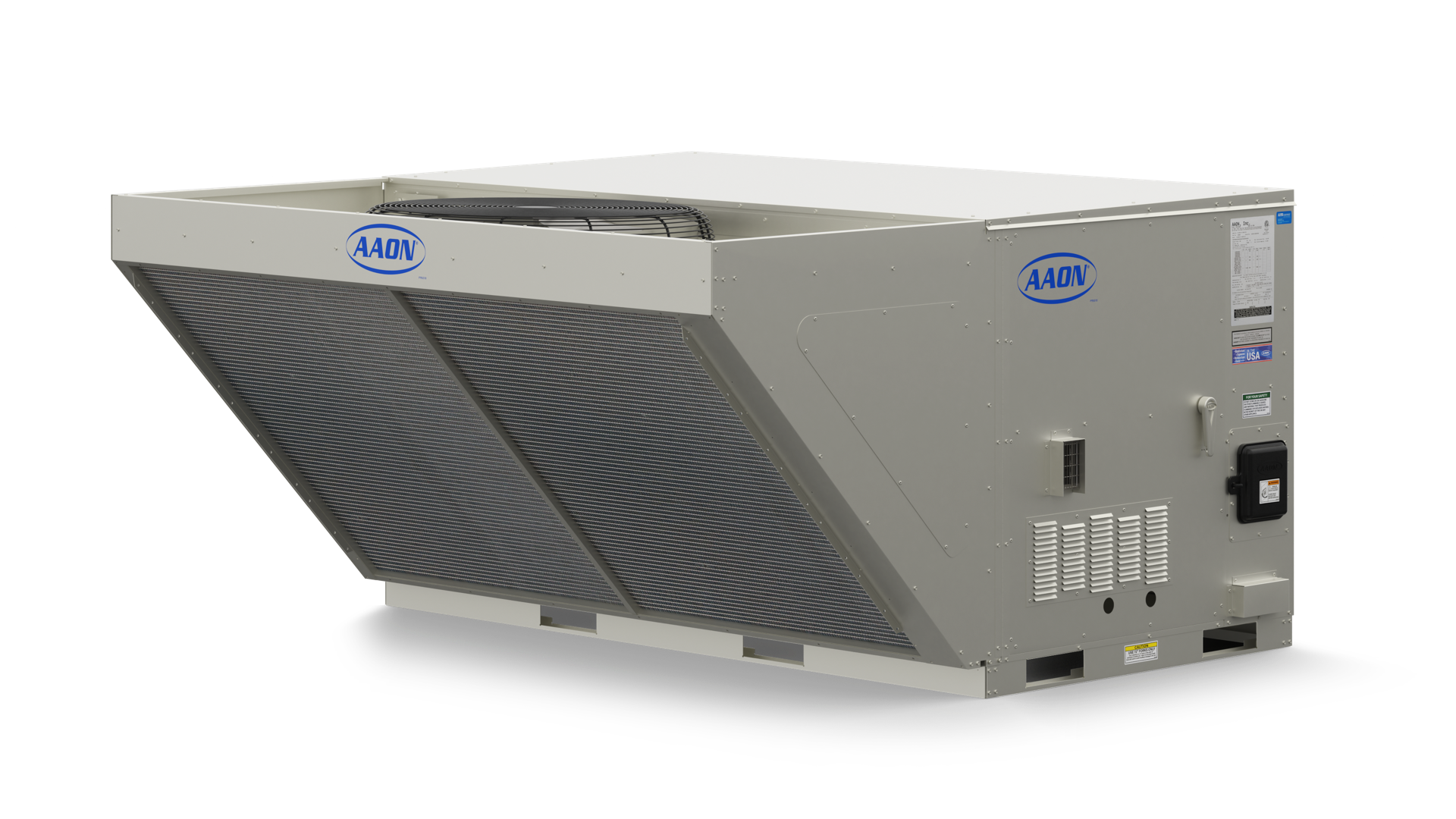

AAON RN Series rooftop units continue to lead the packaged rooftop equipment industry in performance and serviceability. Double wall rigid polyurethane foam insulated cabinet construction and direct drive backward curved plenum fans allow RN series units to have quiet, energy-efficient airflow with high static pressure capabilities.

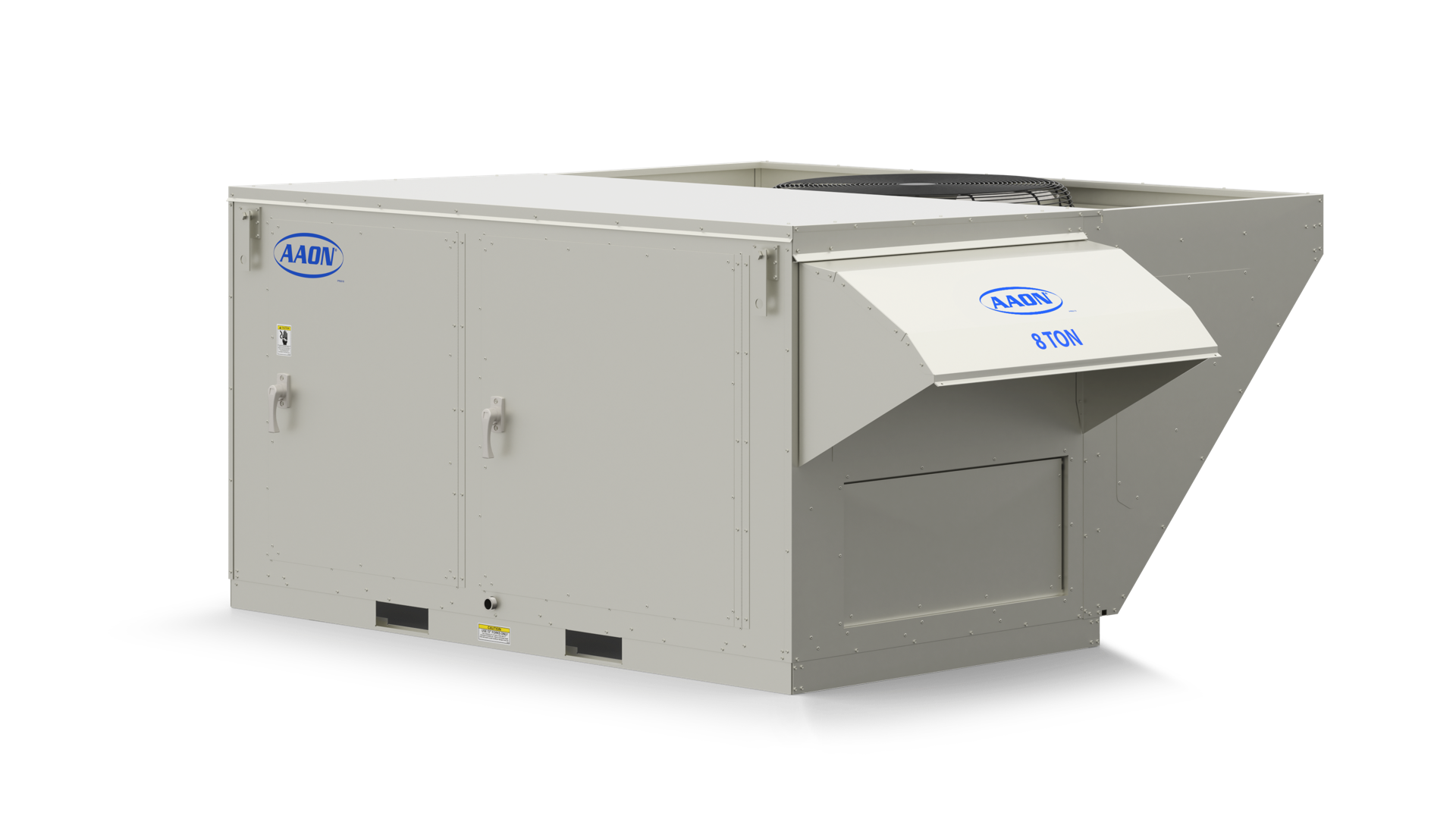

RN Series Units also feature lockable hinged doors which provide service access to all sections of the unit.
Capacity:
6-140 TONS
- Documentation
- Performance & Quality
- Features & Options
- Applications
- Knowledge Base
Documentation
Performance & Quality
Performance
- Up to 22.5 Air-Cooled IEER
- Up to 14.9 Air-Cooled EER
- For significant gains in efficiency, two refrigerant circuit designs with individual or tandem compressors are available in select sizes for better part load efficiencies than four circuits
- Interlaced evaporator coil for superior turndown and consistent face temperature
- AHRI Certified Performance
Quality
- Two-inch double wall rigid polyurethane foam panel cabinet construction has a thermal resistance of R-13 or greater, which exceeds the R-value of a cabinet with four-inch thick fiberglass construction. Panels include a thermal break, with no metal contact from inside to outside, to prevent heat transfer through the panel and prevent condensation on the outside of the cabinet. The inner wall protects the insulation from moisture damage, prevents microbial growth, and is easy to clean. This type of construction also makes the cabinet more rigid and resistant to damage, provides increased sound dampening, and reduces air leakage and infiltration
- Access doors with full length stainless steel piano hinges and quarter turn, zinc cast, lockable handles provide improved reliability over single point hinges and plastic or sheet metal handles, and make the unit easily serviceable
- Corrosion resistant exterior polyurethane paint exceeds a 2,500 hour salt spray test - over five times the industry standard of 500 hours.
- Double sloped stainless steel drain pans eliminate standing water which can support microbial growth and stainless steel construction prevents corrosion that could lead to water leaks and contaminants in the air stream
- Sustainable long lasting design backed by some of the best warranties in the industry
- Five year non-prorated compressor warranty
- 15 year non-prorated aluminized steel gas heat exchanger warranty
- 25 year non-prorated stainless steel gas heat exchanger warranty
Features & Options
Features
- Direct drive backward curved plenum supply fans with rubber isolation mounts are more energy efficient, quieter, and require less maintenance than belt driven fans
- Labeled electrical components and color-coded wiring match the unit specific color-coded wiring diagram which is laminated and permanently affixed inside the control compartment
- Factory provided or customer provided controller can be selected to meet existing or new building control architecture
- Unit controls and compressors are contained within compartment isolated from the air stream for ease of service and quiet operation
- Run test report, color-coded wiring diagram, and Installation, Operation and Maintenance manual with startup form is included in control access compartment of every unit
- Factory installed, sensible or enthalpy controlled, AMCA Certified Class 2 low leakage gear driven economizer dampers allow for free cooling
- ECM (Electronically Commutated Motor) driven condenser fans for energy savings and refrigerant head pressure control
- Multiple methods of humidity control including: High Capacity Cooling Coils, Return Air Bypass, Mixed Air Bypass, and Modulating Humidity Control which provides energy efficient dehumidification, even with low sensible heat loads, without the temperature swings common with on/off reheat systems
- RN Series Horizontal Configuration units are available with high efficiency final filtration
- Modulating gas heat and SCR electric heat provide energy efficient, consistent supply air temperature heating and improved occupancy comfort
- Multiple high efficiency filtration options, with up to a MERV 14 efficiency rating
Options
- Factory installed total and sensible AAONAIRE® energy recovery wheels save cooling and heating dollars
- Polymer e-coated coils are available to extend the life of the coils and protect them in corrosive environments
- Interior corrosion protection option protects interior components of the unit in corrosive environments
- VFD (Variable Frequency Drive) controlled supply, exhaust, and return fans for precise airflow control, building pressure control, and reduced power consumption
Applications
- Air-cooled condenser or air-source heat pump packaged DX rooftop units, 6-140 tons
- Water-cooled condenser, water-source heat pump, or geothermal heat pump configurations

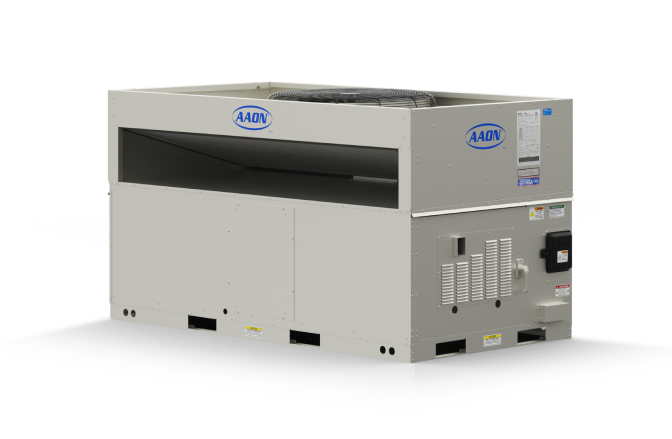

- Horizontal configuration is available for RQ Series units (2-6 tons) and RN Series units (11, 13, 16-30 tons), providing a solution for applications that require horizontal ductwork; it does not require special horizontal supply/return curbs
- Chilled water or non-compressorized DX air handling units, 1,800-42,000 cfm
- Make up air capability, up to 100% outside air, to meet ventilation requirements
- High performance hot water, steam, electric, and gas heating
- Dual Two-Stage scroll compressors for improved part load efficiency
- Variable capacity scroll compressors (10-100%) for load matching cooling and improved part load efficiency
- Variable speed scroll compressors for load matching cooling and high part load efficiency
