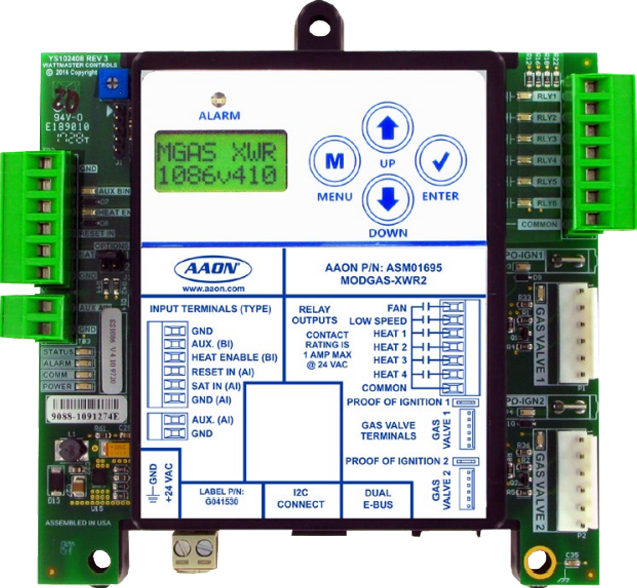

MODGAS-XWR2-1
MODGAS-XWR2-1
ALL PRODUCTS

MODGAS-X Series

The Orion Controls product line allows the VCCX2 Controller to expand its features and capabilities by utilizing numerous application specific add-on modules. These modules can be used as a stand-alone or as expansion modules communicating with a VCCX2 Controller via a modular cable.

The MODGAS-X and the MODGAS-XWR2 can modulate up to two gas valves to maintain a desired Discharge Air Temperature. It also controls the speed of the induced draft fan to maintain proper combustion in the heat exchanger. These modules can be used as stand-alone or in conjunction with the VCM-X E-BUS, VCB-X, or VCCX2 Controller using a modular cable.

Please verify the software required before attempting to perform an update. The software is identified on the software label near the Status LED or using the Software Version screen.

SPECIFICATIONS

  • Features

    The MODGAS-XWR2 Module is designed to be used with White-Rogers® valves only. It will modulate up to two White-Rogers gas valves to maintain a desired Discharge (Supply) Air Temperature (up to four modulating gas valves may be controlled when a second MODGAS-XWR2 Controller configured as a slave module). The MODGAS-XWR2 Controller also controls the speed of the induced draft fan to maintain proper combustion in the heat exchanger.

  • Options
    • MODGAS-XWR2 Module
    • MODGAS-X Module

The MODGAS-XWR2 Module is designed to be used with White-Rogers® valves only. It will modulate up to two White-Rogers gas valves to maintain a desired Discharge (Supply) Air Temperature (up to four modulating gas valves may be controlled when a second MODGAS-XWR2 Controller configured as a slave module). The MODGAS-XWR2 Controller also controls the speed of the induced draft fan to maintain proper combustion in the heat exchanger.

  • MODGAS-XWR2 Module
  • MODGAS-X Module
