ASM07563 - A2L MC
ASM07563 - A2L MC
ALL PRODUCTS

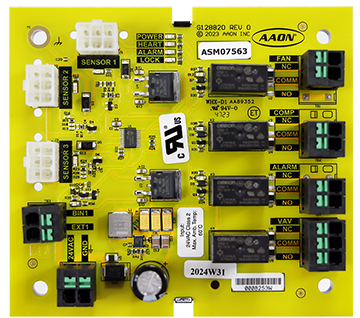

A2L Mitigation Controller

The A2L Mitigation Controller is part of the Refrigerant Detection system and is designed to detect A2L refrigerant leaks in the airstream and/or cabinet.
The A2L Mitigation Controller has three sensor inputs, one binary input and four relays.

SPECIFICATIONS

  • Features

    The A2L Mitigation Controller monitors sensors located in critical locations within the equipment for A2L gases including:

    • Air stream sensing for coil leaks.
    • Cabinet sensing for cabinet leaks.
    • Gas Heat cabinet sensing if gas heat is selected.
    Each mitigation board can monitor up to three A2L sensors connected to its dedicated sensor connections.
    Each mitigation board provides 4 separate relay outputs with designated target functional connections. One relay is specifically designated for field use.

The A2L Mitigation Controller monitors sensors located in critical locations within the equipment for A2L gases including:

  • Air stream sensing for coil leaks.
  • Cabinet sensing for cabinet leaks.
  • Gas Heat cabinet sensing if gas heat is selected.
Each mitigation board can monitor up to three A2L sensors connected to its dedicated sensor connections.
Each mitigation board provides 4 separate relay outputs with designated target functional connections. One relay is specifically designated for field use.
