Controls

AAON can provide the exact level of control that is needed for any application. Multiple control configurations are available from a simple terminal block for a field installed controller to factory installed controls which can be integrated into a building automation system.

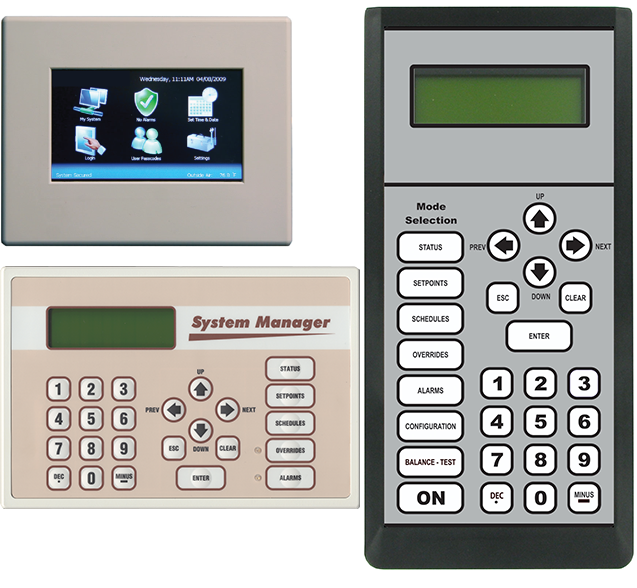

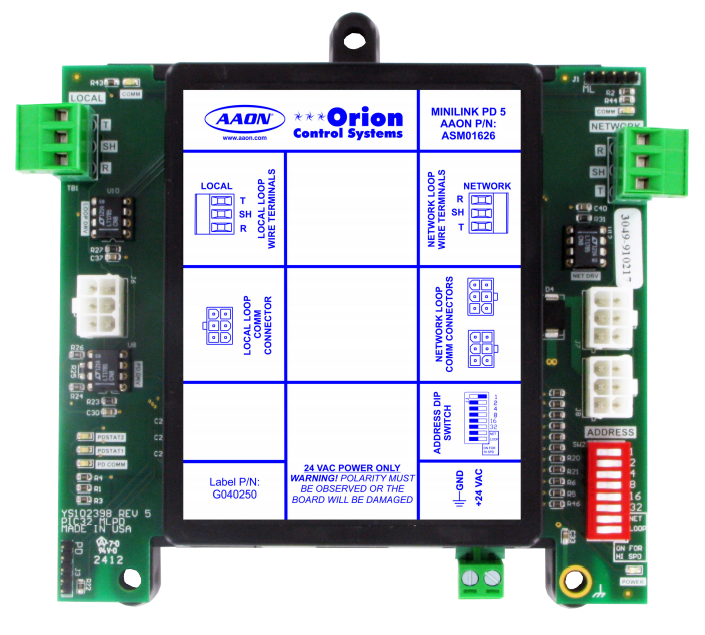

WattMaster Orion Control Systems Controller

The WattMaster Orion Control Systems controllers were developed to provide a powerful yet simple control solution for AAON equipment. The controllers allows users to take full advantage of AAON exclusive features without the additional cost or complexity of designing a unique control strategy for each job.

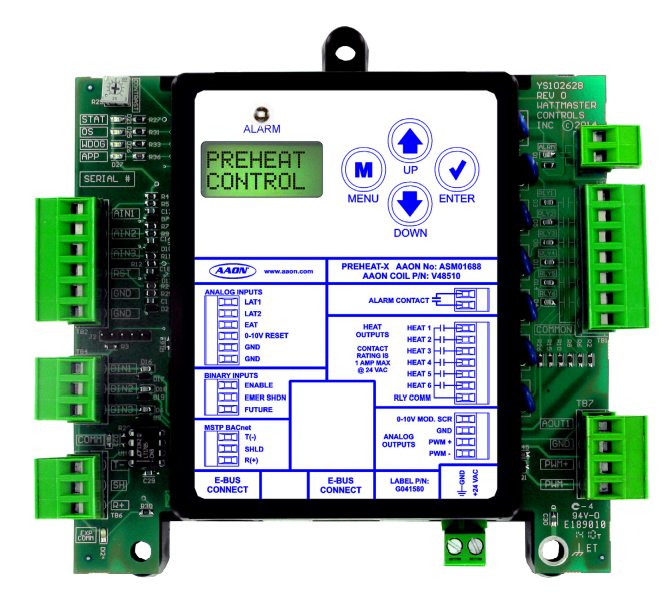

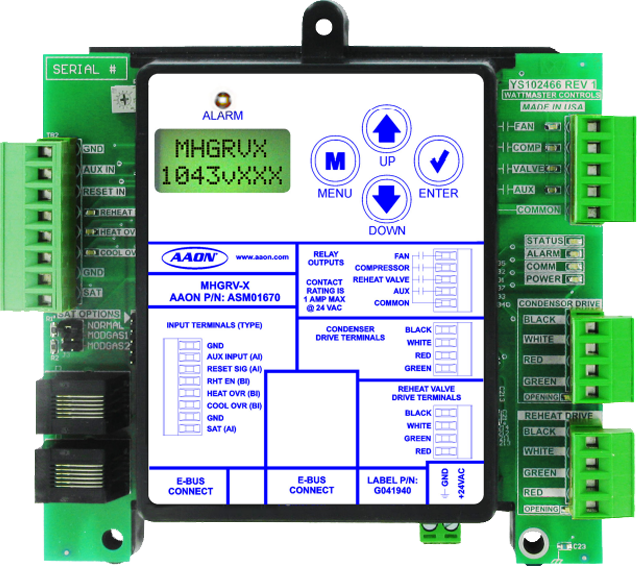

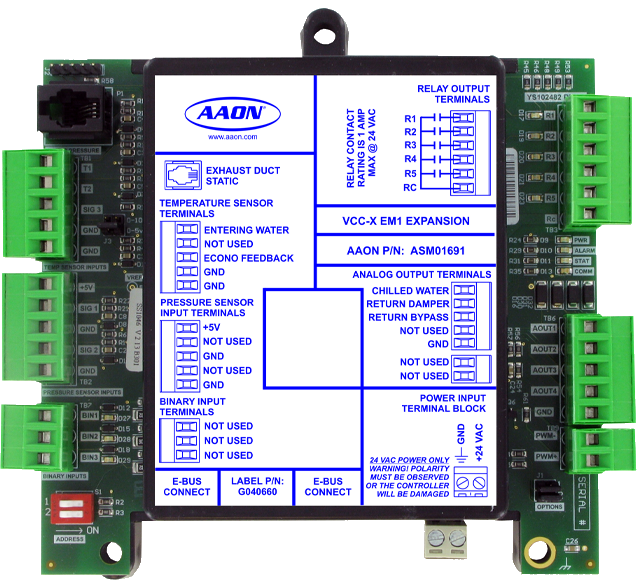

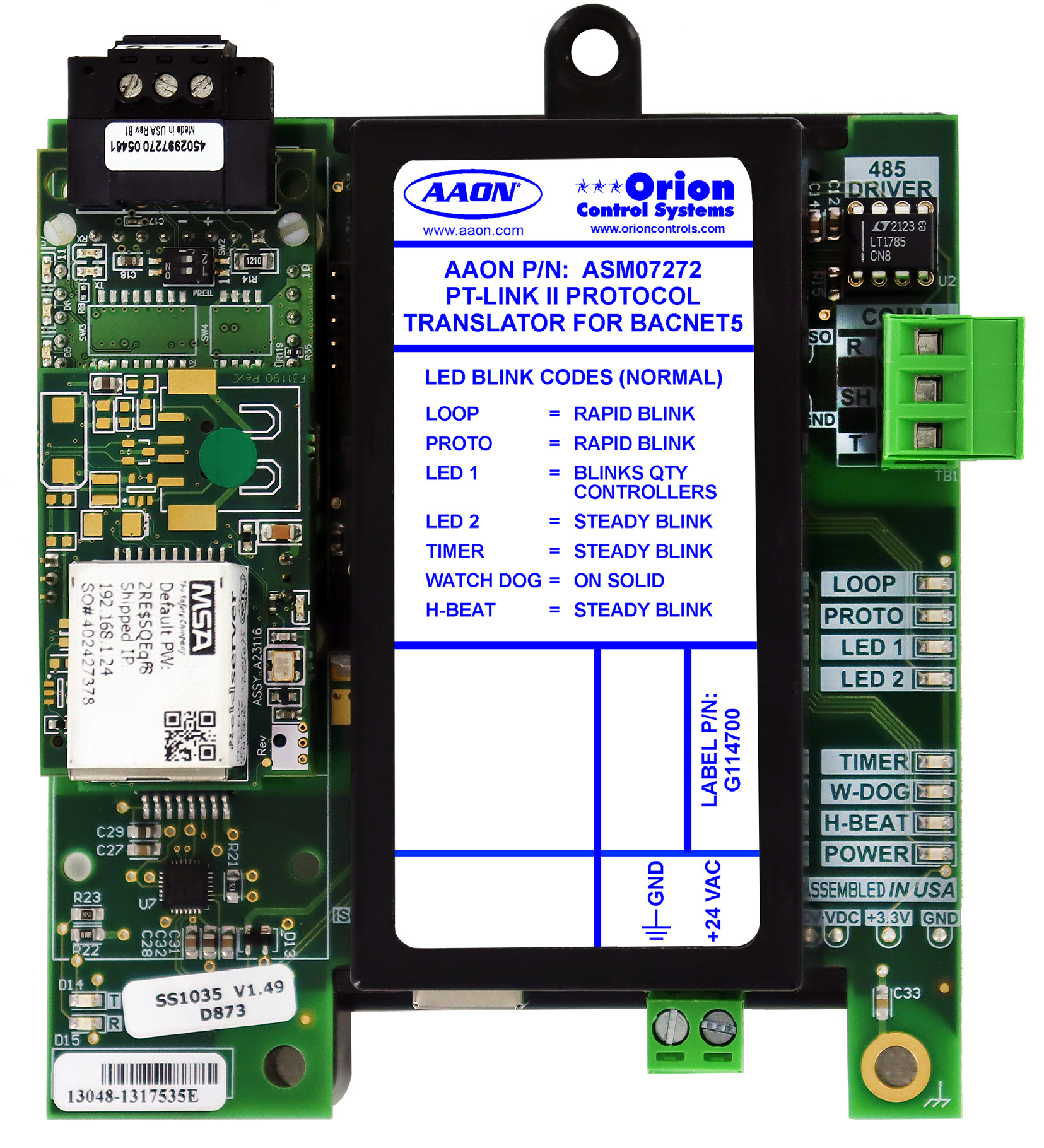

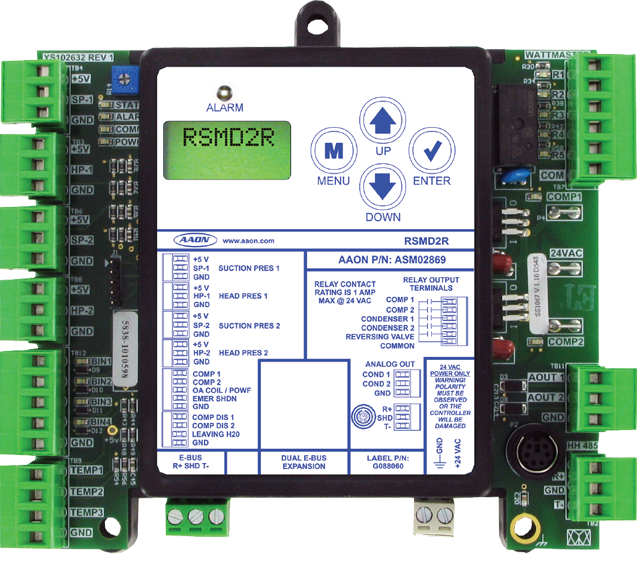

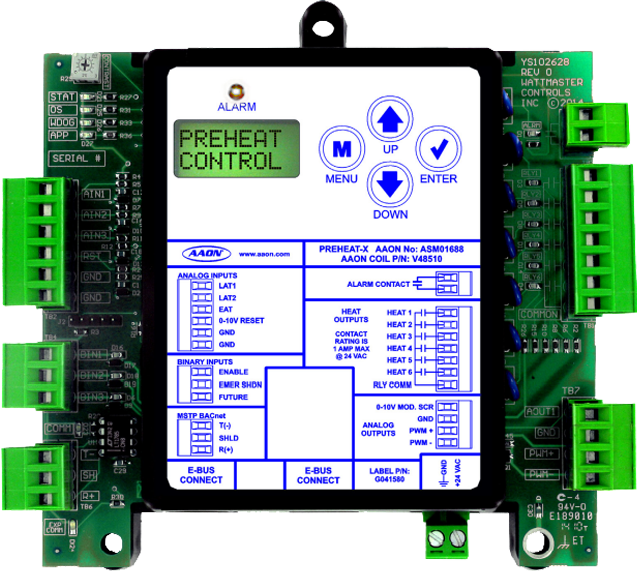

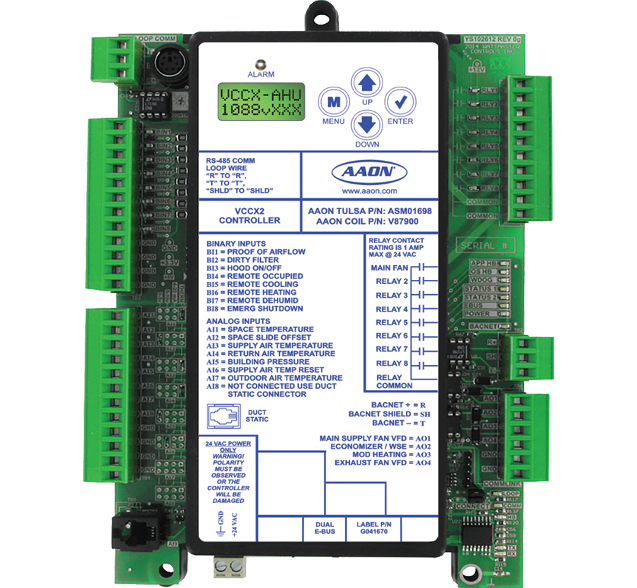

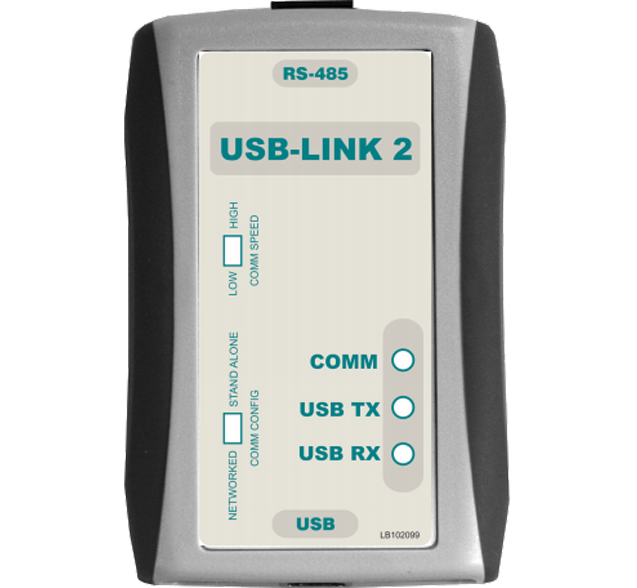

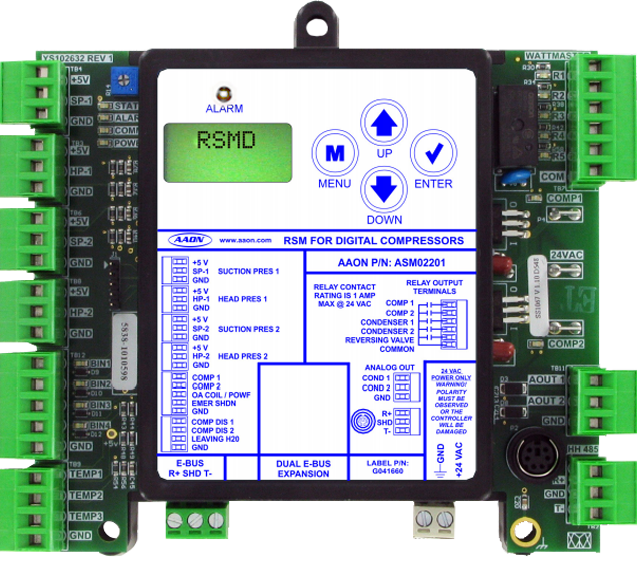

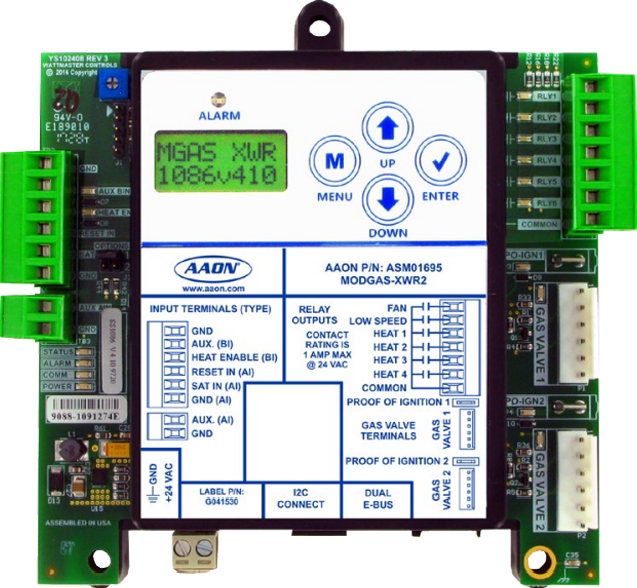

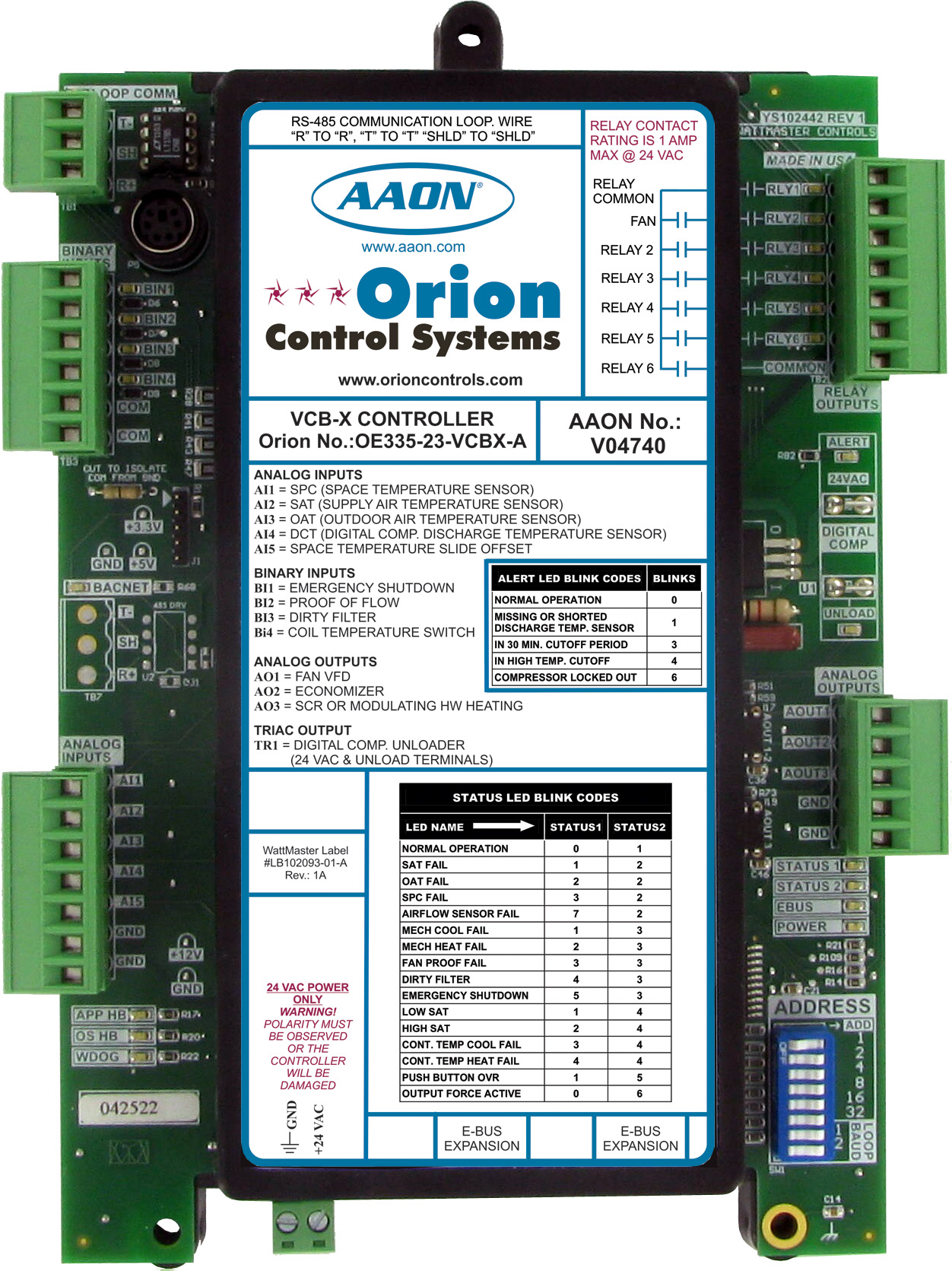

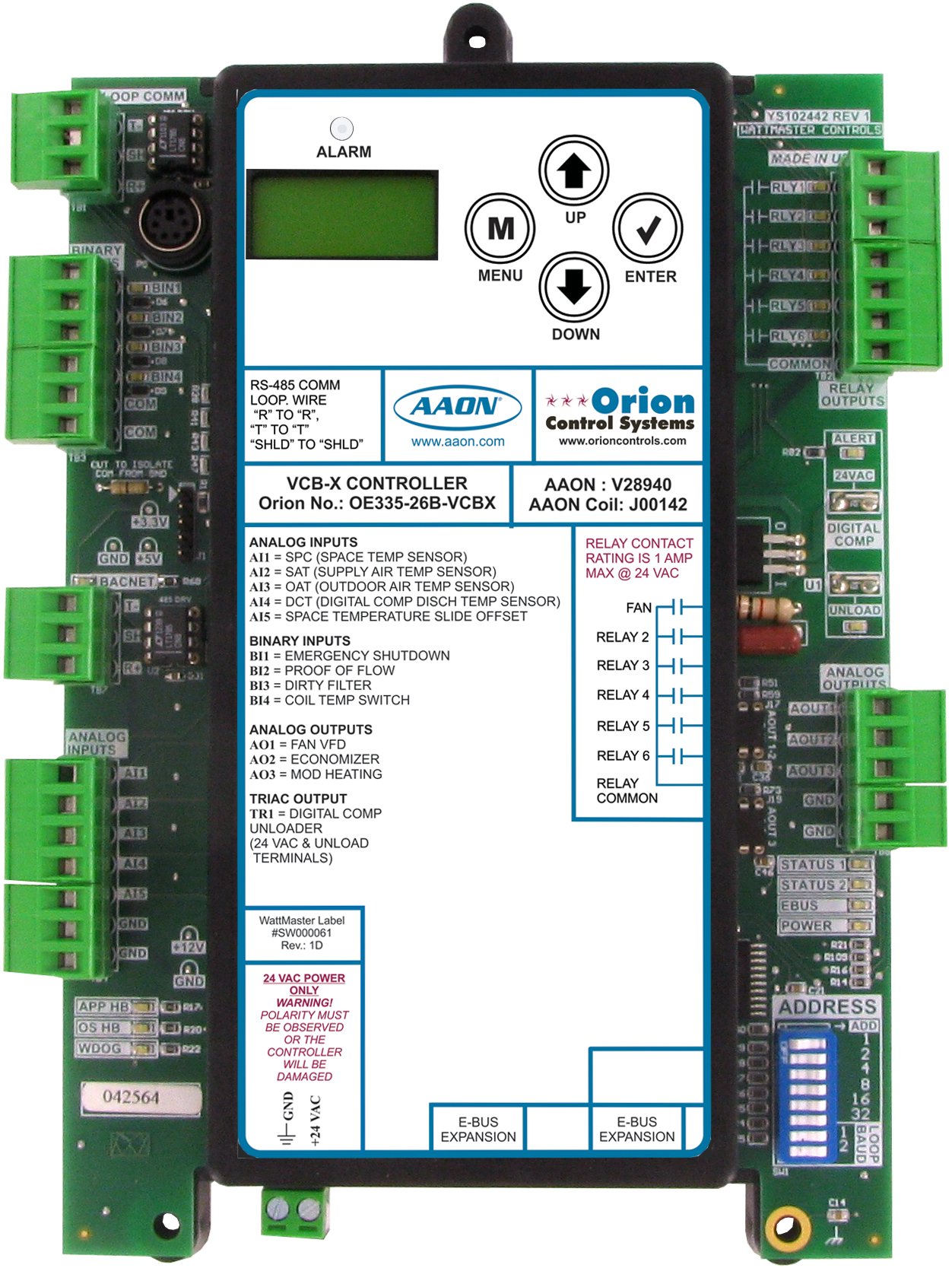

Current Controllers - VCM-X, VCB-X, VCC-X, SA, MODGAS-X, MHGRV-X, Preheat-X, Full Digital Module, Dual Digital Module, One Condenser Head Pressure Module, Two Condenser Head Pressure Module, WSHP Protection Module, PT-Link, PT-Link II, CommLink IV, IP Module, Remote Link II and USB-Link.

Discontinued Controllers - VCM, VAV/CAV, MUA II, HB and IP-Link.

For more information about current and discontinued WattMaster Orion Control Systems products, including product overviews, sales brochures, design guides, setpoint worksheets, technical guides, installation instructions, Prism software, and training opportunities follow the links below.

Wattmaster Homepage

AAON JENEsys Controller

The AAON Jenesys Controller, powered by Niagara AX Framework™, is an internet based stand alone controller developed for network applications. the controller is IP addressable, can reside on a TCP/IP network and can have all unit and system functions controlled with an internet browser in real-time; including setpoint adjustment, scheduling, alarming, trending, logging, and diagnostics. Contact AAON applications department for more information. AAON Jenesys Controller

AAON Mini Controller

The AAON Mini Controller and AAON Touchscreen Controller are simple controls option for energy saving applications. They are remote mounted in the space similar to a conventional thermostat. The Mini Controller is designed specifically for use with equipment incorporating a lead or single variable compressor. The controller can be used for constant volume air conditioner and heat pump applications or Single Zone VAV air conditioner and heat pump applications. BACnet MS/TP network connection is available on the Mini Controller. The Touchscreen Controller is available for controller up to four compressors and includes the I/O to control additional features and applications. AAON Mini Controller AAON Mini Controller

Micro Control Systems (MCS) Controllers

Micro Control Systems Homepage The Micro Control Systems (MCS) Magnum Controller is factory installed on all chiller equipment. The controller automatically cycles compressors to maintain leaving water set point temperature over a wide variety of operating conditions. The large LCD display provides local system information for scheduled service and maintenance. Connections on the MCS controller allow building management systems interactive communication or monitoring of the unit. The MCS Micromag Controller is available for light commercial packaged units or split systems. The controller allows users to take advantage of AAON exclusive features and can be used for multiple different applications.

Outdoor Airflow Measurement System

Outdoor Airflow Measurement System Factory installed outdoor airflow measuring is available on AAON products. This system can be used with a factory provided AAON controller or with customer provided controls via an output signal. The Airflow Signal Processor provides an interface for controlling the system. The following documents provide information on starting up and maintaining the Outdoor Airflow Measurement System and Airflow Signal Processor.

Terminal Block or Customer Installed Controls is a low voltage terminal block with labeled connections provided for field connection to a thermostat or a field provided and installed control system. Factory installed isolation relays can be provided to prevent a voltage drop in the control circuit.

Factory Installed Customer Provided Controls is a feature available from AAON that allows you to specify the type and manufacturer of the controller to be used in your aaon equipment. The aaon sales representative and aaon applications personnel will review your specific control requirements to verify that the controller selected is capable of providing all inputs and outputs required to operate aaon equipment. By understanding the application and the controller selected for use, the aaon engineering department can verify if the controller is able to physically fit in the control cabinet along with the other required factory installed components. AAON will then integrate this controller into the equipment and create a custom wiring diagram specifically for your unit.

This option allows complete flexibility in controls used on the job and prevents jobs from being locked into proprietary controllers or manufacturer specific control strategies. Factory installed customer provided controls saves time and money at the job site by allowing aaon expert technicians who have knowledge of AAON equipment to install and wire the controls at the factory.
